Heavy Duty Hydraulic Disc Brake

Construction Equipment Hydraulic Brake

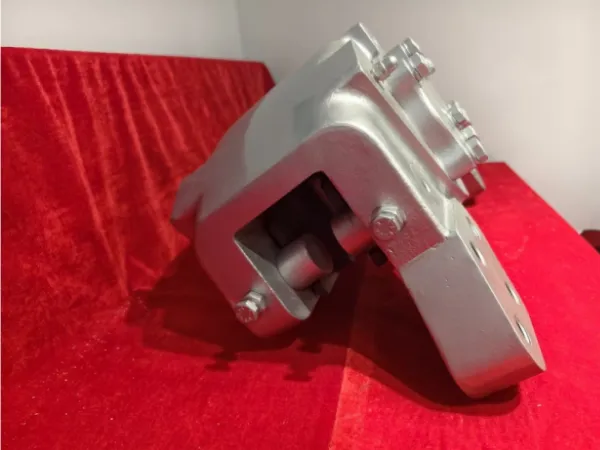

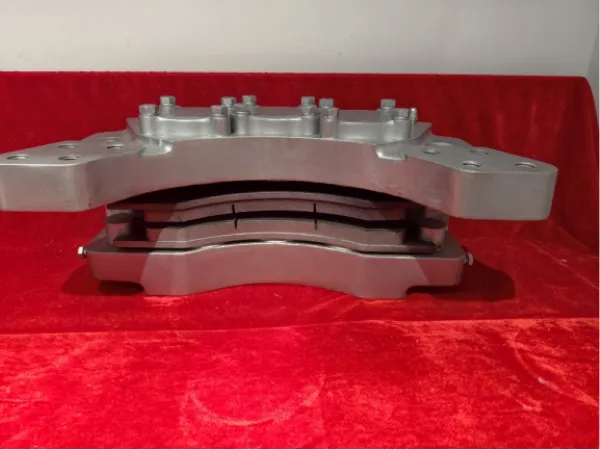

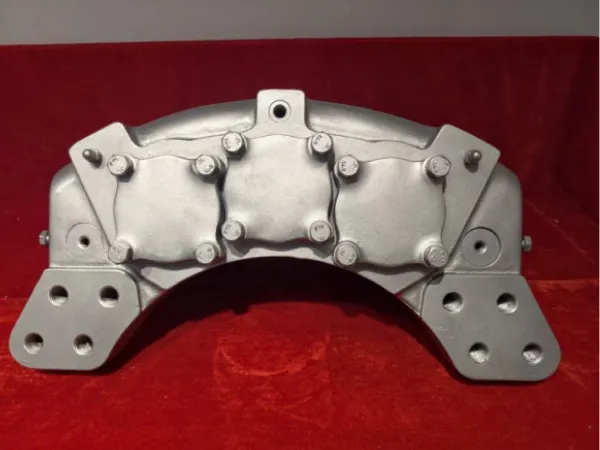

FY80

Disc Brake

Disc Brake
Disc Brake
Request a Quote

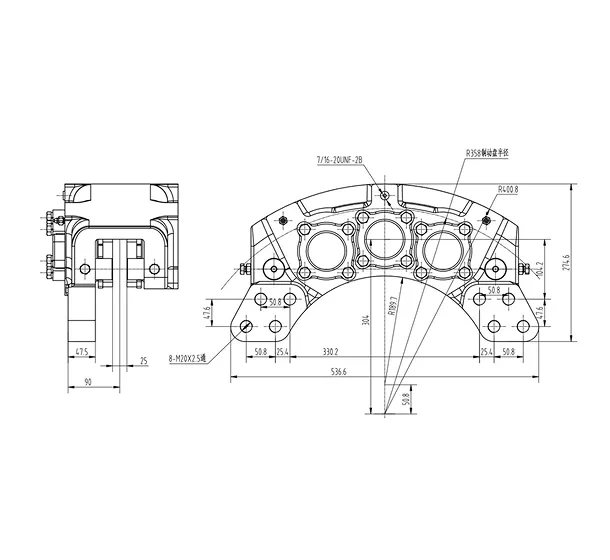

FY80 Disc Brake Technical Specifications
Model FY80
Caliper Material High-strength Ductile Iron
Brake Type Normally Open, Hydraulic Brake
Pistons & Bore(mm) 6×80
Brake System Pressure (MPa) 10-18(MPa)
Friction Coefficient 0.35
Brake Disc Thickness(mm) 19
Brake Disc Diameter(mm) 716
Effective Radius(mm) 304
Weight(kg) 66.5
Installation 3 o’clock or 9 o’clock position
Hydraulic Medium Mineral Oil or Synthetic Brake Fluid

Note: Customized services and engineering support are available when the hydraulic medium or pressure requirements change.

Fangyuan Industry is a premier high-tech manufacturer dedicated to the research, design, and mass production of high-performance braking systems. Since 1985, we have served as a critical OEM partner for global heavy-duty machinery leaders, providing essential stopping power for construction, mining, port logistics, and aerospace applications. Our products are engineered using high-strength alloy casting and precision CNC machining centers to ensure structural integrity under extreme stress.
