Hydraulic Braking Systems
FY70Fn

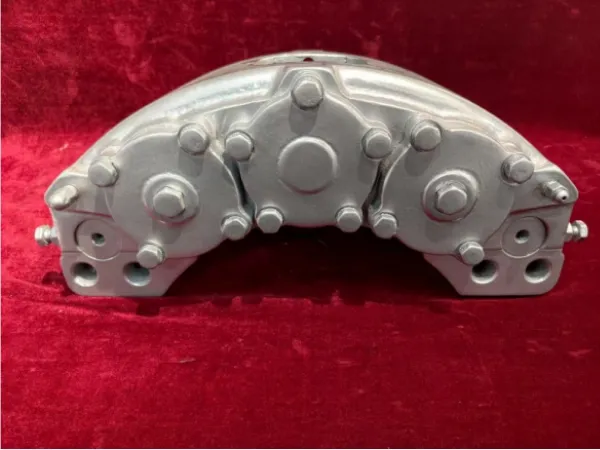

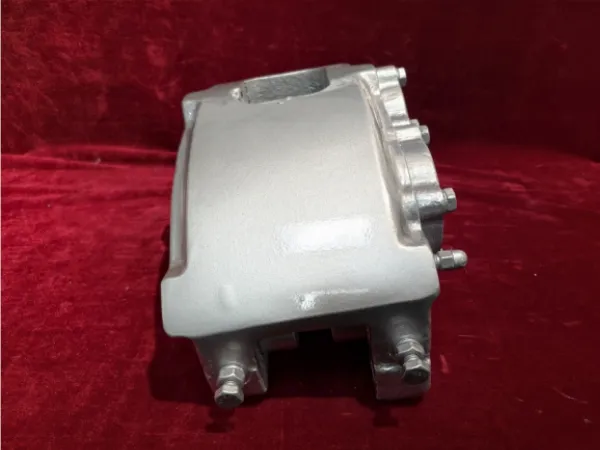

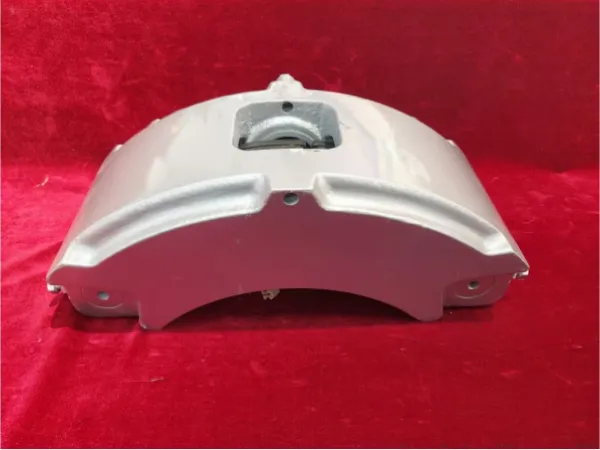

Disc Brake
Request a
Quote

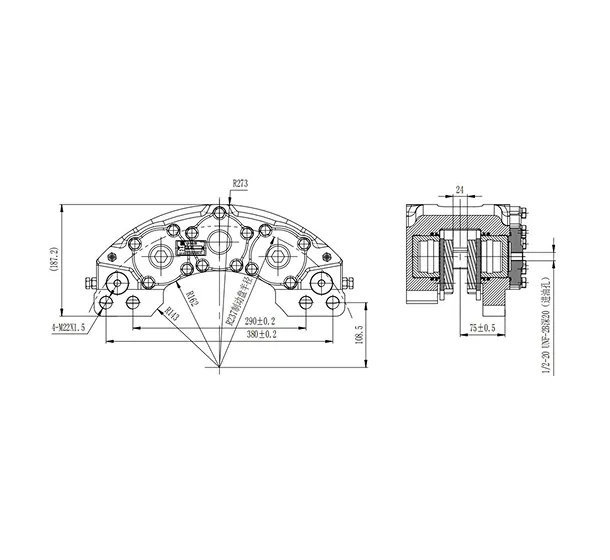

FY70Fn Disc Brake Technical Specifications
| Model | FY70Fn |
| Caliper Material | High-strength Ductile Iron |
| Brake Type | Normally Open, Hydraulic Brake |
| Pistons & Bore(mm) | 6×70 |
| Max. Oil Pressure (MPa) | 13 |
| Friction Coefficient | ≥0.35 |
| Pad Surface (cm²) | 193 |
| Pad Thickness (mm) | 15 |
| Max. Pad Wear (mm) | 13 |
| Brake Disc Thickness(mm) | 18 |
| Brake Disc Diameter(mm) | 474 |
| Effective Radius(mm) | 201 |
| Weight(kg) | 42 |
| Installation | 3 o’clock or 9 o’clock position |
| Hydraulic Medium | Mineral Oil or Synthetic Brake Fluid |
| Rim Specification (mm/inch) | 500/20 |
Note: When the braking oil pressure exceeds 13 MPa, please contact our engineers for customized development services.
