Heavy Duty Hydraulic Disc Brake

Construction Equipment Hydraulic Brake

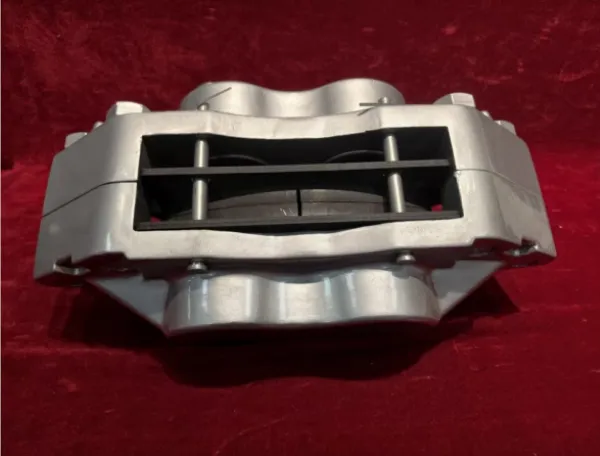

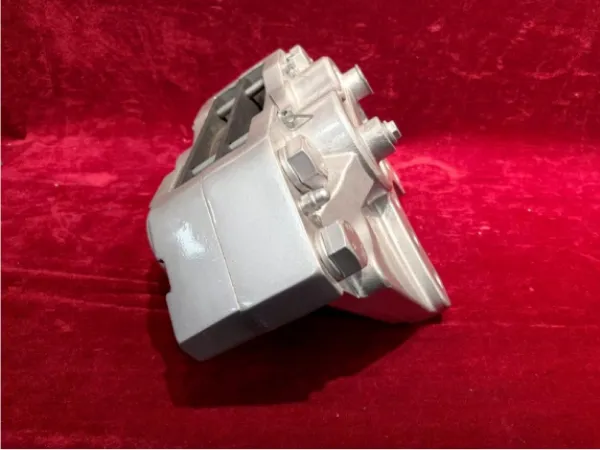

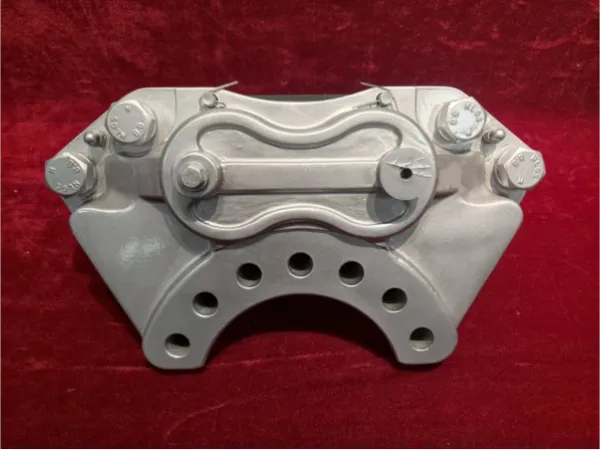

FY50LD

Hydraulic Brake

Hydraulic Brake
Hydraulic Brake
Request a Quote

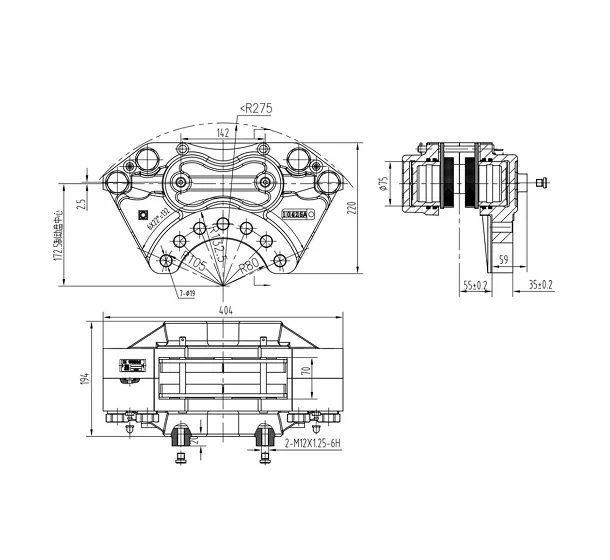

FY50LD Hydraulic Brake Technical Specifications
Model FY50LD
Caliper Material High-strength Vermicular Graphite Cast Iron
Brake Type Normally Open, Hydraulic Brake
Pistons & Bore(mm) 4×75
Max. Oil Pressure (MPa) 12.5
Friction Coefficient ≥0.35
Friction Area per Pad (CM2) 154.5
Friction Volume per Pad (CM3) 247.5
Inlet Port M12×1.25
Pad Type Dry
Pad Thickness (mm) 16
Max. Pad Wear (mm) 14
Effective Braking Radius(mm) 12.5
Brake Disc Thickness(mm) 20
Hydraulic Medium Synthetic Brake Fluid
Brake Disc Diameter(mm) 440

Note: When the braking oil pressure exceeds 12.5 MPa, please contact our engineers for customized development services.
