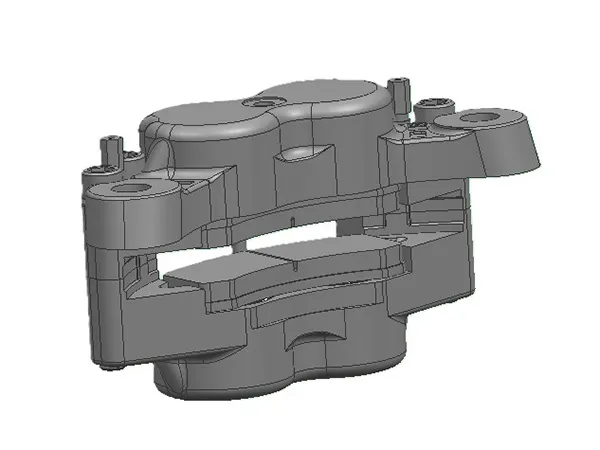

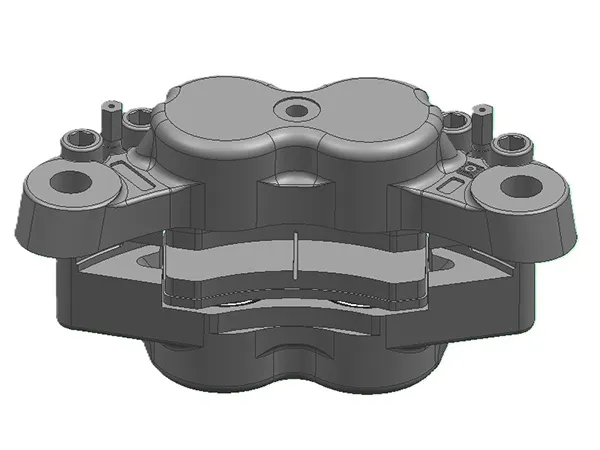

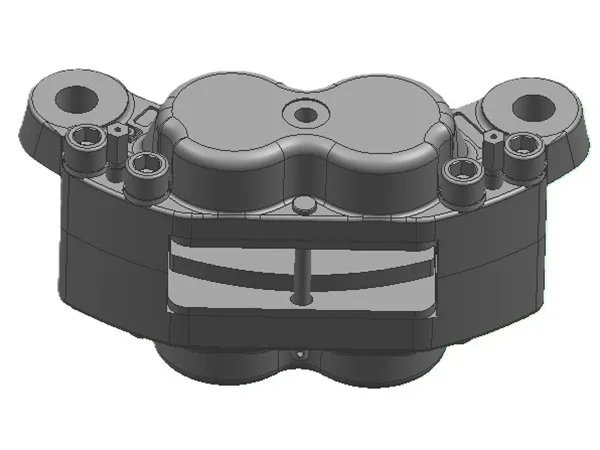

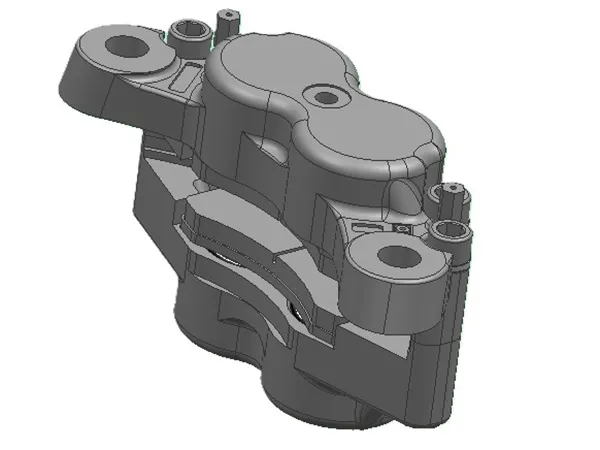

Heavy Duty Hydraulic Disc Brake

Construction Equipment Hydraulic Brake

FY03

Heavy Disc Brake

Heavy Disc Brake
Heavy Disc Brake
Request a Quote

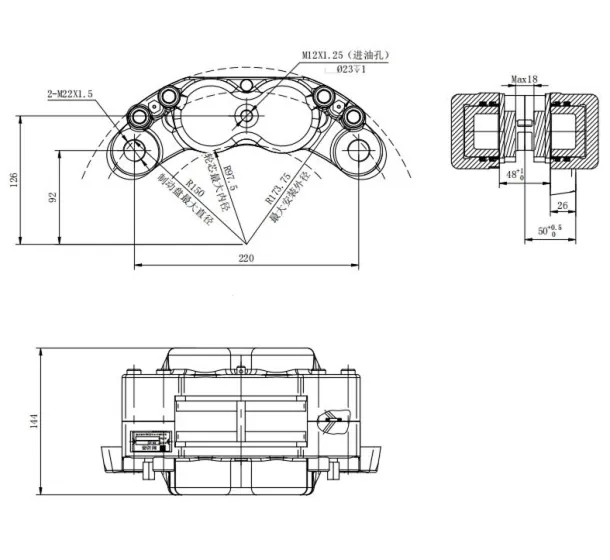

FY03 Heavy Disc Brake Technical Specifications
Model FY03
Caliper Material High-strength Vermicular Graphite Cast Iron
Brake Type Normally Open, Hydraulic Brake
Pistons & Bore(mm) 4×50
Max. Oil Pressure (MPa) 14
Friction Coefficient 0.3
Inlet Port M12×1.25
Pad Type Dry
Pad Thickness (mm) 10
Max. Pad Wear (mm) 6
Hydraulic Medium Hydraulic Oil
Brake Disc Diameter (mm) 300

Note: When the braking oil pressure exceeds 14 MPa, please contact our engineers. We provide customized solutions tailored to your specific requirements, parameters, and applications.

Fangyuan Industry is a premier high-tech manufacturer dedicated to the research, design, and mass production of high-performance braking systems. Since 1985, we have served as a critical OEM partner for global heavy-duty machinery leaders, providing essential stopping power for construction, mining, port logistics, and aerospace applications. Our products are engineered using high-strength alloy casting and precision CNC machining centers to ensure structural integrity under extreme stress.
