FYT70
Hydraulic Disc Brake (Off-Road Brake)
Request a
Quote

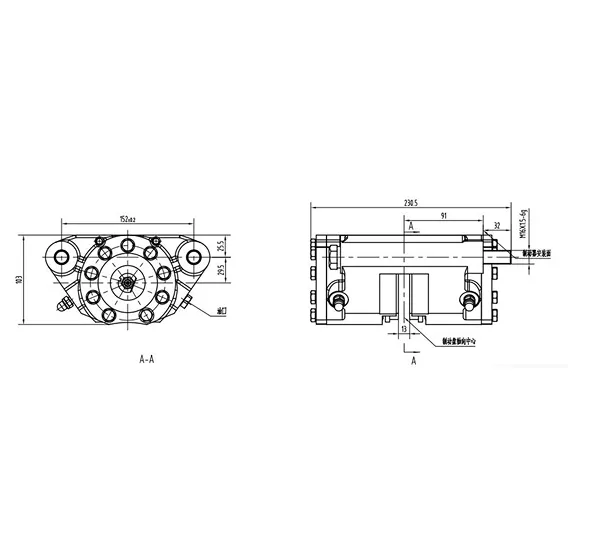

FYT70 Hydraulic Disc Brake Technical Specifications
| Model | FYT70 |
| Caliper Material | High-strength Vermicular Graphite Cast Iron |
| Brake Type | Fixed, Normally Open, Hydraulic Brake |
| Number of Pistons | 2 |
| Max. Oil Pressure (MPa) | 10 |
| Lining Material /Friction Coefficient | Asbestos-free /μ >0.4 |
| Friction Area per Pad (CM2) | 52.2 |
| Friction Volume per Pad (CM3) | 52.2 |
| Inlet Port | 7/16”-20UNF |
| Brake Disc Thickness(mm) | 13 |
| Brake Disc Diameter(mm) | 350～400 |
| Hydraulic Medium | Mineral Hydraulic Oil |
| Displacement per 1mm Stroke(ml) | 7.7 |
| Theoretical Braking Torque (N.M) | T=3.08*(P-0.7)*(D/2-32) |
| P: Working Pressure (MPa) | |
| D: Brake Disc Diameter(mm) | |
| Weight(kg) | 17.2 |
Note: When the braking oil pressure exceeds 10 MPa, please contact our engineers. We provide customized solutions tailored to your specific requirements, parameters, and applications.
