Heavy Duty Hydraulic Disc Brake

Construction Equipment Hydraulic Brake

FYZC01-08

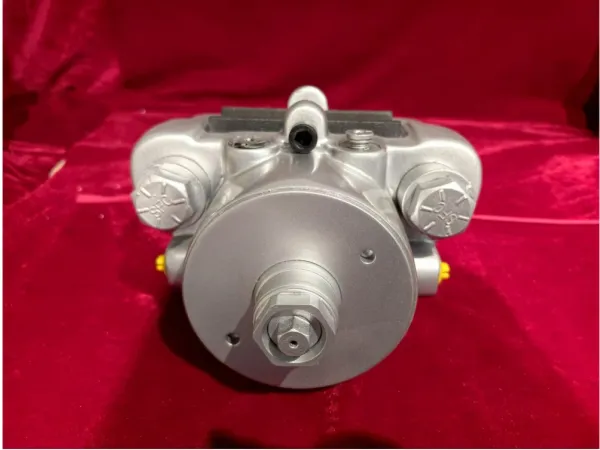

Disc Brake (Parking brake)

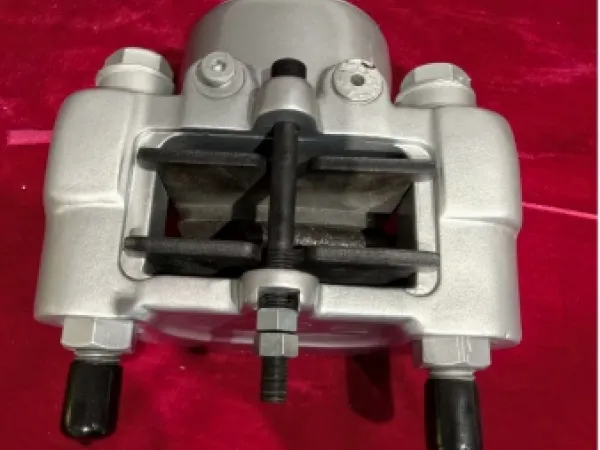

Disc Brake (Parking brake)

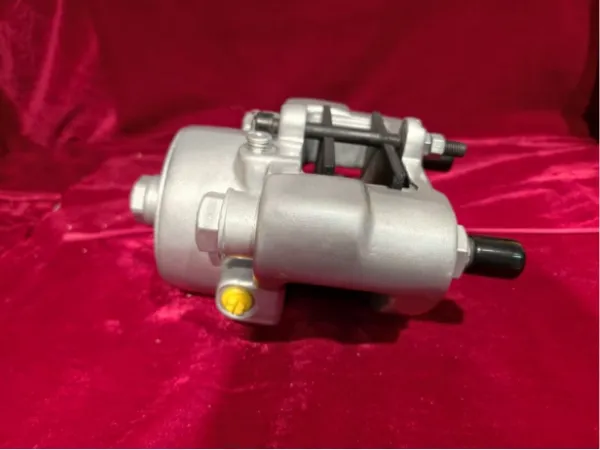

Disc Brake (Parking brake)
Request a Quote
FYZC01-08 Disc Brake Technical Specifications
Model FYZC01-08
Caliper Material High-strength Ductile Iron
Piston Bore φ90
Brake Type Spring Applied, Hydraulic Released (SAHR)
Calculated Braking Torque ≥2400N.m
Release Oil Pressure 9~20MPa
Working Medium Hydraulic Oil
Brake Disc Thickness 9.5-12.7
Bake Drum/Disc Diameter Range φ254~ φ508 mm
Pad Friction Coefficient 0.5
Weight(kg) 11.5

Note: Customized services and engineering support are available when the hydraulic medium or pressure requirements change.

Fangyuan Industry is a premier high-tech manufacturer dedicated to the research, design, and mass production of high-performance braking systems. Since 1985, we have served as a critical OEM partner for global heavy-duty machinery leaders, providing essential stopping power for construction, mining, port logistics, and aerospace applications. Our products are engineered using high-strength alloy casting and precision CNC machining centers to ensure structural integrity under extreme stress.
