FY09E

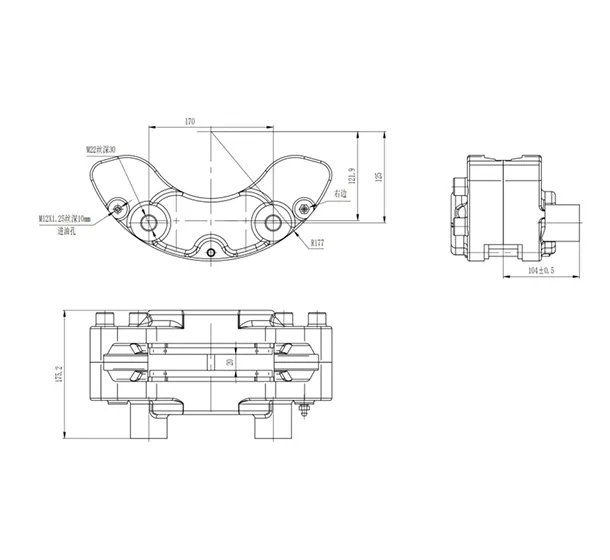

Heavy Disc Brake
Request a
Quote
FY09E Heavy Disc Brake Technical Specifications
| Model | FY09E |
| Caliper Material | High-strength Vermicular Graphite Cast Iron |
| Brake Type | Normally Open, Hydraulic Brake |
| Pistons & Bore(mm) | 4×55 |
| Max. Oil Pressure (MPa) | 12.5 |
| Friction Coefficient | ≥0.35 |
| Friction Area per Pad (CM2) | 92 |
| Friction Volume per Pad (CM3) | 83 |
| Inlet Port | M12×1.25 |
| Pad Type | Dry |
| Pad Thickness (mm) | 9 |
| Max. Pad Wear (mm) | 6 |
| Effective Braking Radius(mm) | 122.5 |
| Brake Disc Thickness(mm) | 16 |
| Hydraulic Medium | Hydraulic Oil |
| Brake Disc Diameter(mm) | 300 |
| Weight(kg) | 18 |
| Rim Specification (mm/inch) | 380/15 |
Note: When the braking oil pressure exceeds 12.5 MPa, please contact our engineers for customized development services
