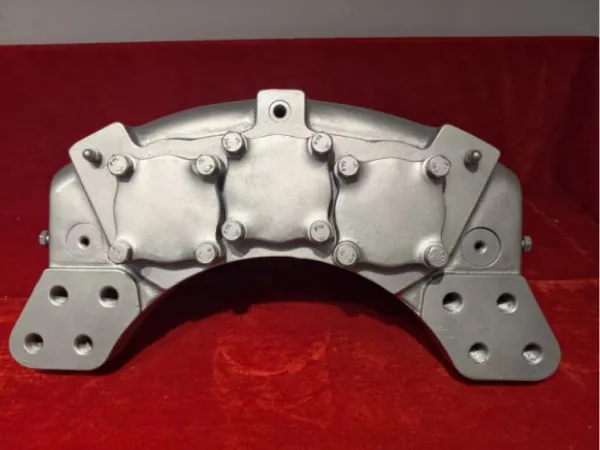

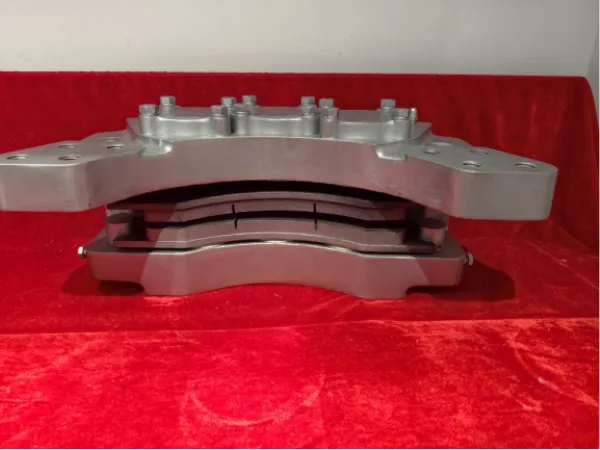

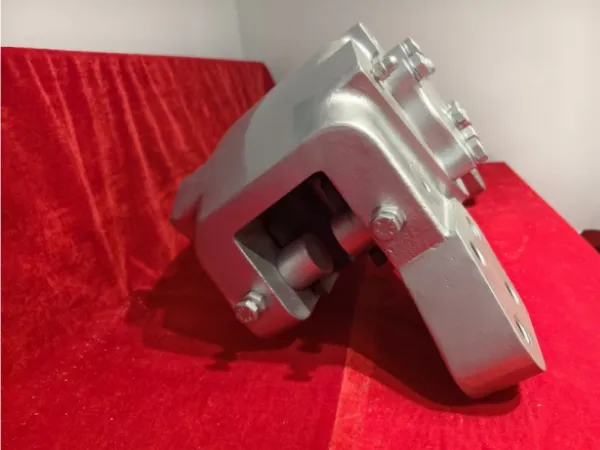

FY80
Disc Brake

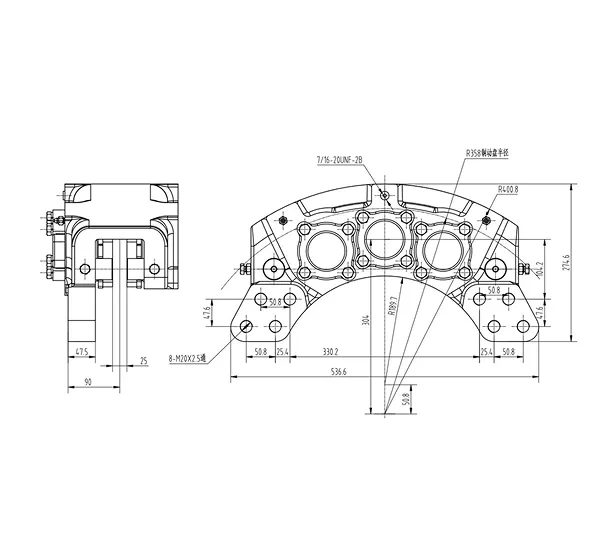

FY80 Disc Brake Technical Specifications
| Model | FY80 |
| Caliper Material | High-strength Ductile Iron |
| Brake Type | Normally Open, Hydraulic Brake |
| Pistons & Bore(mm) | 6×80 |
| Brake System Pressure (MPa) | 10-18(MPa) |
| Friction Coefficient | 0.35 |
| Brake Disc Thickness(mm) | 19 |
| Brake Disc Diameter(mm) | 716 |
| Effective Radius(mm) | 304 |
| Weight(kg) | 66.5 |
| Installation | 3 o’clock or 9 o’clock position |
| Hydraulic Medium | Mineral Oil or Synthetic Brake Fluid |
Note: Customized services and engineering support are available when the hydraulic medium or pressure requirements change.
