Hydraulic Braking Systems
FY25

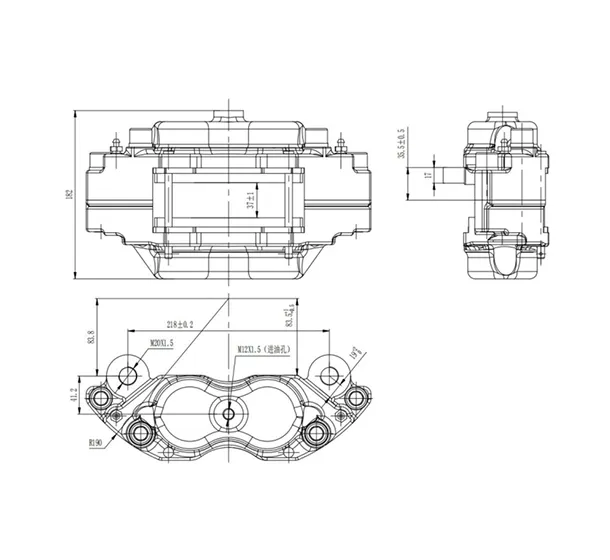

Defense Equipment Brake
Request a
Quote
FY25 Defense Equipment Brake Technical Specifications
| Model | FY25 |
| Caliper Material | High-strength Vermicular Graphite Cast Iron |
| Brake Type | Normally Open, Hydraulic Brake |
| Pistons & Bore(mm) | 4×60 |
| Max. Oil Pressure (MPa) | 10 |
| Friction Coefficient | ≥0.35 |
| Friction Area per Pad (CM2) | 95 |
| Friction Volume per Pad (CM3) | 95 |
| Inlet Port | M12×1.5 |
| Pad Type | Dry |
| Pad Thickness (mm) | 10 |
| Max. Pad Wear (mm) | 7 |
| Effective Braking Radius(mm) | 128 |
| Brake Disc Thickness(mm) | 30 |
| Hydraulic Medium | Synthetic Brake Fluid |
| Brake Disc Diameter(mm) | 318 |
| Weight(kg) | 11.5 |
| Rim Specification (mm/inch) | 381/15 |
Note: When the braking oil pressure exceeds 12.5 MPa, please contact our engineers for customized development services.
